24 Meter Truck mounted concrete pump – Putzmeister 24m – 4 Stage
The Specialist and Allrounder – high-degree utilisation in halls, tunnels and on small-scale sites
- Flexible 4-section-boom with ZR-folding
- Low unfolding height
- TRD-Support for compact support area
- Pumps up to 160 m³/h. Alternative S-Valve (BSF) or C-Valve (BRF).
- Agile 2-Axle-Chassis. Weight reserve e.g. for magazines or pipes on 3-Axle-Chassis.
- Short wheelbase. No boom overhang
- Applications: small, medium sized sites. Sites with difficult support situations. Tunnels, Halls and under bridges.

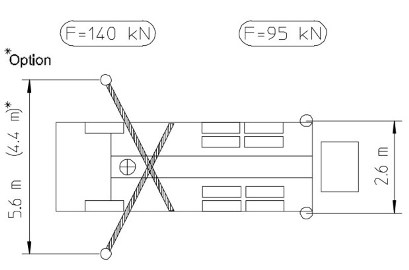

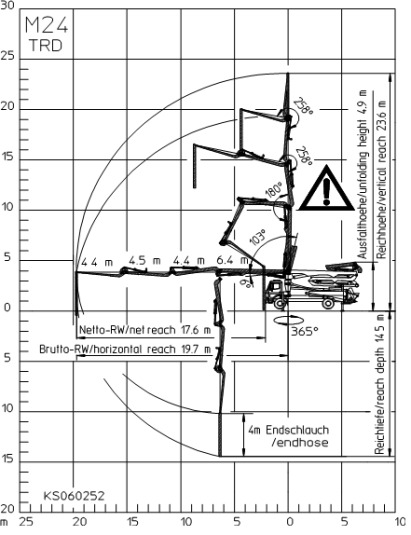

24 Meter Truck mounted concrete pump – Putzmeister 24m – 4 Stage
| Boom (M 24-4) | ||
|---|---|---|
| model | M 24-4 | |
| delivery line dn | 125/5,5 | |
| arms | 4 | |
| folding system | ZR | |
| vertical reach | 23,6m | 77’5″ |
| horizontal reach | 19,7m | 64’7″ |
| depth of reach | 14,5m | 47’7″ |
| unfold height | 4,9m | 16’1″ |
| end hose length max | 4m | 13 |
| support leg force front | 140kN | 140 |
| support leg force rear | 95kN | 95 |
| Pump (BSF …09 H) | |
|---|---|
| model | BSF …09 H |
| delivery cylinder stroke | 1400mm |
| delivery cylinder diameter | 230mm |
| output pistonside | 90m³/h |
| pressure pistonside | 78bar |
| strokes pistonside | 26/min |
28 Meter Truck mounted concrete pump – Schwing S28X – 4 Stage
- 4-Section Double Z
This boom offers more articulation than any other boom in its class. And with 540-degrees of articulation in the last two Z-fold sections, this boom gets you in places no other boom can. - Generation 3 Pump Kit
Outperforms every other concrete pump on high visibility projects while also placing millions of yards on everyday pours. - Vector Controls
Valuable operational data at your fingertips to allow monitoring of the pumping process from the remote control box. - Rock Valve
No other sequencing valve combines lowest cost per yard maintenance costs and ease of rebuilding as the Rock Valve.
28 Meter Truck mounted concrete pump – Schwing S28X – 4 Stage
Here’s the boom size that started it all more than 30 years ago, now modernized for 21st century pumping. The new S 28 X combines four-sections with more articulation than any other 28-meter boom. And with 540-degrees of articulation in the last two sections, this boom gets you in places no other boom can.Use your S 28 X to place inside enclosed structures or under bridge decks and mezzanines with low 19’2” unfolding height. It also functions as a residential foundation pump with 78-feet of horizontal reach and performs on light commercial work with 91-feet of vertical reach. Fast, compact set-up with X-style outriggers and fast clean-out of the Rock Valve™ means multiple jobs per day including line pumping with the optional 180-degree discharge outlet.
Expand your market with this multi-duty pump that delivers as a specialty pump, goes out on everyday pours and fills in as a line pump. High utilization means high revenue when you match this pump up with lots of jobs every week.

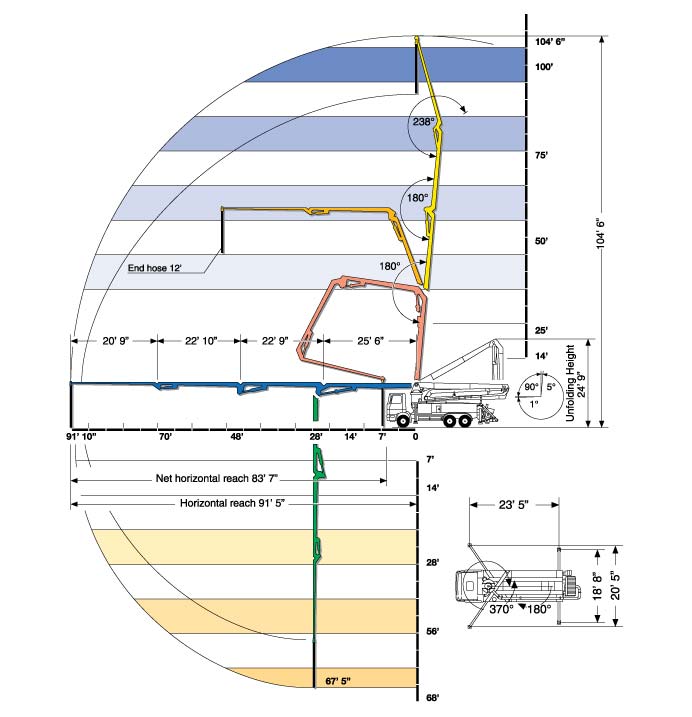

32 Meter Truck mounted concrete pump – Schwing S 32 X – 4 Stage
- 4-Section Roll and Fold™
The original and for many contractors the best all around boom type for fast unfolding, easy cleanout and precision placement. - Generation 3 Pump Kit
Outperforms every other concrete pump on high visibility projects while also placing millions of yards on everyday pours. - Vector Controls
Valuable operational data at your fingertips to allow monitoring of the pumping process from the remote control box. - Rock Valve
No other sequencing valve combines lowest cost per yard maintenance costs and ease of rebuilding as the Rock Valve.
32 Meter Truck mounted concrete pump – Schwing S 32 X – 4 Stage
Here’s the boom size that started it all more than 30 years ago, now modernized for 21st century pumping. The new S 28 X combines four-sections with more articulation than any other 28-meter boom. And with 540-degrees of articulation in the last two sections, this boom gets you in places no other boom can.Use your S 28 X to place inside enclosed structures or under bridge decks and mezzanines with low 19’2” unfolding height. It also functions as a residential foundation pump with 78-feet of horizontal reach and performs on light commercial work with 91-feet of vertical reach. Fast, compact set-up with X-style outriggers and fast clean-out of the Rock Valve™ means multiple jobs per day including line pumping with the optional 180-degree discharge outlet.
Expand your market with this multi-duty pump that delivers as a specialty pump, goes out on everyday pours and fills in as a line pump. High utilization means high revenue when you match this pump up with lots of jobs every week.
| Boom (S 32 X – 4 Stage) | |
|---|---|
| model | S 28 X -4 |
| arms | 4 |
| folding system | Roll-and-fold (R) |
| vertical reach | 32m |
| horizontal reach | 25.7m |
| depth of reach | – |
| unfold height | 7.5m |
| end hose length max | 3.8m |
| Slewing Range | 400° |

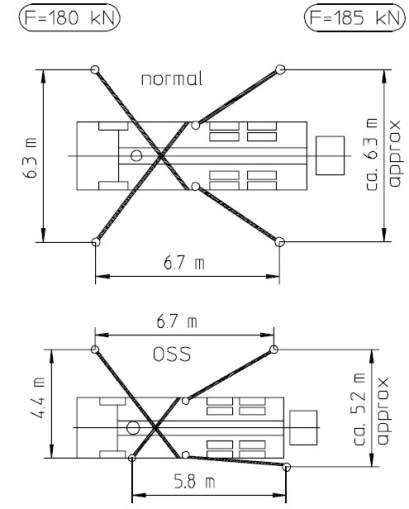

36 Meter Truck mounted concrete pump – Putzmeister 36m – 4 Stage
Compact support area, large reach, powerful pumps
- Flexible boom with roll-folding
- TRDI – Support for compact support area, fast setting up, relieved framework and difficult setup situations (OneSideSupport optional)
- Pumps up to 160 m³/h. Alternative S-Valve (BSF) or C-Valve (BRF).
- 4-Axle-Chassis for optimal für optimal load distribution
- Less weight for more payload and simplified admission
- Applications: Small, medium sized sites. Sites with difficult support situations. Sites with difficult set up situations (OneSideSupport optional).

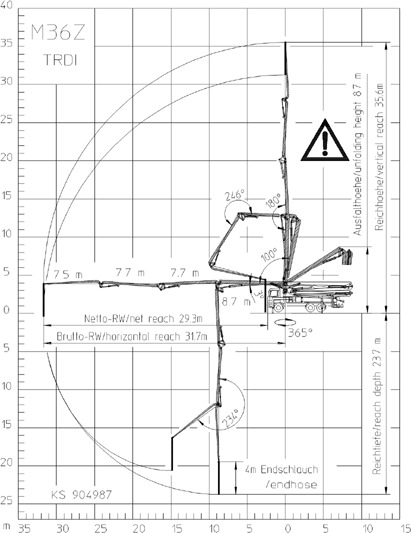

36 Meter Truck mounted concrete pump – Putzmeister 36m – 4 Stage
| Boom (M 36-4) | |
|---|---|
| model | M 36-4 |
| delivery line dn | DN 125, max. 85 bar |
| arms | 4 |
| folding system | 4-Section Z-fold(Z) |
| vertical reach | 35.6m |
| horizontal reach | 31.7m |
| depth of reach | 23.7m |
| unfold height | 8.7m |
| end hose length max | 4m |
| Slewing range | 365° |
| Pump (BSF .14 H) | |
|---|---|
| model | BSF …14 H |
| delivery cylinder stroke | 2100mm |
| delivery cylinder diameter | 230mm |
| output rodside | 140m³/h |
| pressure rodside | 70bar |
| strokes rodside | 27/min |
| output pistonside | 88m³/h |
| pressure pistonside | 112bar |
| strokes pistonside | 17/min |

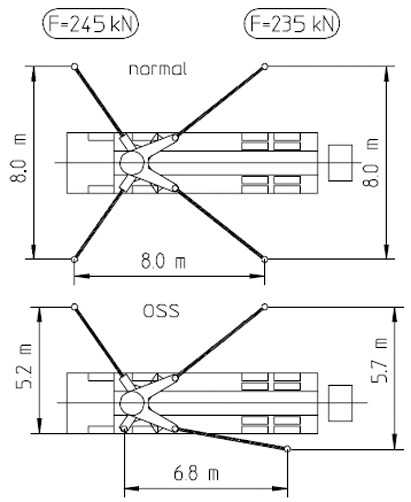

42 Meter Truck mounted concrete pump – Putzmeister 42m – 4 Stage
Compact support area, large reach, powerful pumps
- Flexible boom with roll-folding
- TRDI – Support for compact support area, fast setting up, relieved framework and difficult setup situations (OneSideSupport optional)
- Pumps up to 160 m³/h. Alternative S-Valve (BSF) or C-Valve (BRF).
- 4-Axle-Chassis for optimal für optimal load distribution
- Less weight for more payload and simplified admission
- Applications: Small, medium sized sites. Sites with difficult support situations. Sites with difficult set up situations (OneSideSupport optional).

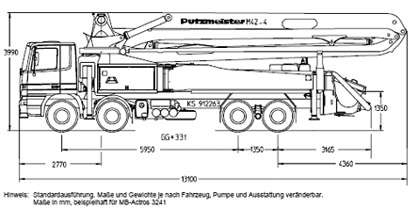

42 Meter Truck mounted concrete pump – Putzmeister 42m – 4 Stage

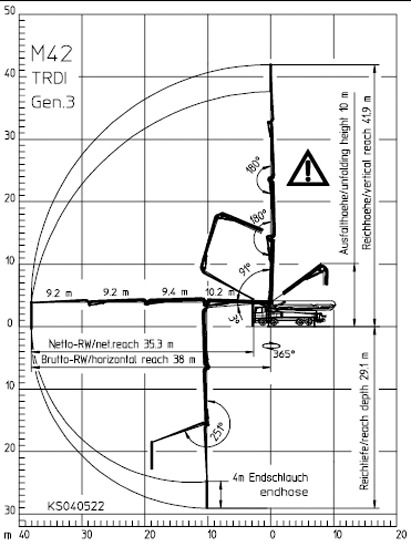

| Boom (M 42-4) | |
|---|---|
| model | M 42-4 |
| delivery line dn | DN 125/5,5 |
| arms | 4 |
| folding system | Roll-and-fold (R) |
| vertical reach | 41.9m |
| horizontal reach | 38m |
| depth of reach | 28.8m |
| unfold height | 10.0m |
| end hose length max | 4m |
| Pump (BSF .14 H) | |
|---|---|
| model | BSF …14 H |
| delivery cylinder stroke | 2100mm |
| delivery cylinder diameter | 230mm |
| output rodside | 140m³/h |
| pressure rodside | 70bar |
| strokes rodside | 27/min |
| output pistonside | 88m³/h |
| pressure pistonside | 112bar |
| strokes pistonside | 17/min |
